[Ed Note]

This program is for most AutoCAD users obsolete since newer versions of AutoCAD enable a user to flatten all the blocks in a file recursively with a single command. It is left up for historical reasons. However if you have a DXF file and you don't have AutoCAD you may need to flatten the file and this might still be a solution. Or, if you need block attributes converted to text and exploding of non-isotropic blocks then you may find this useful.

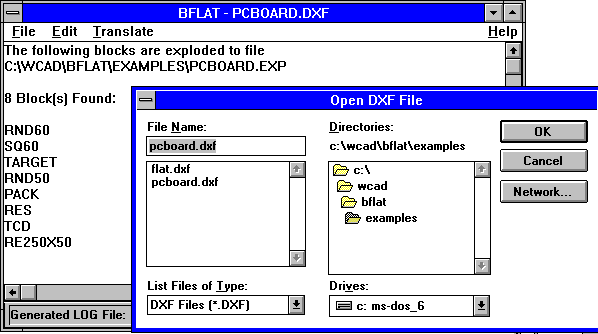

BFLAT

DXF Block Flattening Utility

BFLAT is a DXF filter that explodes all blocks found in the input file and writes a new DXF file with only flat data. Layer information is preserved. Any scaling, mirroring or rotation of the block insertion is taken into account by BFLAT. BFLAT can even explode blocks where the X scale factor is not equal to the Y scale factor - something AutoCAD itself cannot do.

Features

Flattens all Blocks in a DXF File

Breaks off Block Attributes to Text

Explodes Blocks with X scale not equal to Y scale

BFLAT has been used extensively by designers who have CAD systems that do not support AutoCAD block definitions correctly.

Limitations

BFLAT reads DXF files from release 9-12 and writes out a DXF file compatible with releases 9-12.

BFLAT does not support 3D entities, nor does it provide correct results if entities have been drawn using a user defined UCS.

Download Executable

bflatw.zip

Version 1.02 03/21/97 488 Kbyte zipped; password required

This version has been recompiled to run on Windows 95 and Windows NT 4.0. The recompilation was necessary to support the new hardware key libraries provided by Sentinel. It also supports hostid locking the the network card's MAC address if desired.
