XGDSVU is a low cost, easy to use program for viewing GDSII stream files on UNIX workstations. It was developed for mask designers and service bureaus that need to examine a GDSII database visually. The desiger can quickly view the file to determine:

• Database units and resolution
• Critical dimensions
• Structure names and hierarchy
• Extents of structures
• Layers containing data

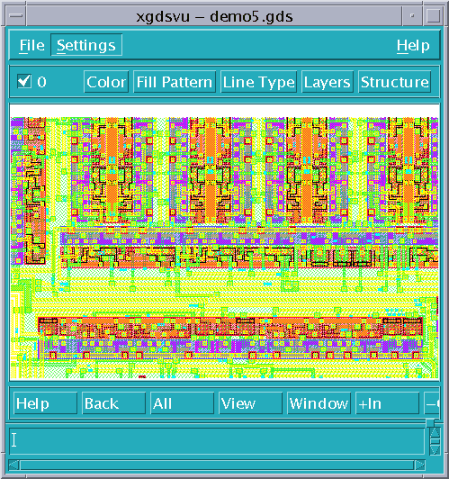

XGDSVU loads and displays stream files quickly. The mask designer does not need to know anything about the GDSII file, or have to create a technology file in advance to read in an unknown stream file. Within seconds the designer can have a list of all layers containing data as well as a list of structures used in the drawing.

Plotter modules are a part of XGDSVU; standard modules include:

• Postscript Level II for monochrome and color laser and thermal printers

• PCL for HP LaserJets and compatibles

• Color RTL for HP 650C, 750C, 250C and small injkets

• Easy to Navigate Menus

• Displays library header, units and resolution

• Shows Structure Hierarchy

• User defined display colors and fills

• Saves and remembers display settings

• Measure dimensions

• Snaps to vertex or grid

• Stores up to 10 different views in RAM for instant display

• Displays GDSII text with height control

• View any selected structure

• View any combination of selected layers

• Highlights illegal (self intersecting boundaries...)


• Supports up to 256 layers instead of 64.

• Supports up to 4096 vertices per path/polygon instead of 200.

XGDSVU supports files on the order of 1 to 25 MB. If you regularly need to view much larger files in the range up to several GB we recommend you evaluate our 2nd generation viewer: Qckvu.
