ASM 850
DXF to MI Bidirectional Translator

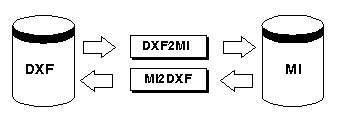

ASM 850 is a bidirectional translator between AutoCAD's DXF database and Hewlett Packard's MI database used in ME-10 and ME30. DXF2MI supports most of the commonly encountered DXF entities used in mechanical drafting. We've built special routines for converting DXF polylines with width into outlines in MI format.

ASM 850 includes the following modules and tools:



DXF to MI Translation
DXF Entity MI Entity
LinesLines
ArcsArcs
CirclesCircles
Polylines*Lines
Text Text
Points*----
BlocksParts
Hatching*Simulated using lines/parts
LayersLayers
LinetypesLinetypes
Dimensions*Lineparts
MI to DXF Translation
MI EntityDXF Entity
LinesPloylines
ArcsArcs
SplinesPolylines (segmented)
Circles Circles
TextText
PartsBlocks
Hatching*Blocks
LinetypesLinetypes
Dimensions*Blocks (lines/text)
*Some limitations apply due to differences between the DXF and MI handling of these entities.
