XmForm error due to x-large font size

The display of graphical display programs such as Artwork's xgdsplot depend on the Solaris CDE font size. In some cases, when the CDE font size is set to X-large or bigger, the Artwork GUI won't be able to display its menus and an error may appear.


Warning:
    Name: w_work_area_form
    Class: XmForm
    Abandoned edge synchronization after 10000 iterations.
    Check for contradictory constraints on the children of this Form widget.

As a result, the Artwork GUI won't look correct as you can see from the example below.

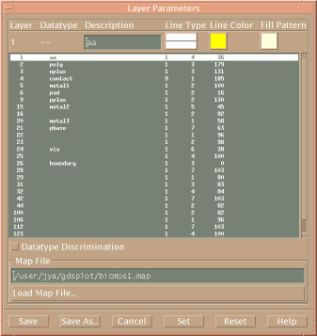

The image on the left is incorrect and it comes up after displaying the error above. Image on the right side is the correct image.


Solution

User must set the Solaris CDE font size to Normal.
