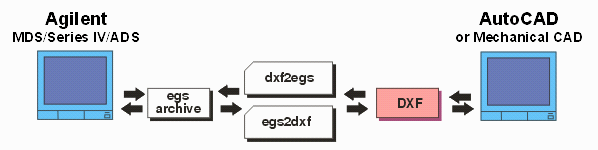

Archive is used by Agilent EDA's MDS, Series IV and ADS microwave/RF layout programs. The translator works with virtually all mechanical CAD programs that read and write DXF format.

ASM 800 attempts to preserve as much information from system to system as possible. Full hierarchy and all layer separation is supported.



  • Bi-directional.

  • Full Hierarchy and Layer Support.

  • Excellent Text support.

  • Compatible with programs that read/write DXF.

  • Import AutoCAD data into MDS, Series IV and ADS.

  Data Sheet   Data Sheet
  Download Software   Download Software
  Revision History   Revision History
  Price and Ordering Info   Price and Ordering Info


  ASM 800 Manual     252KB PDF Format
