Layout2APD reads the ULF file produced by LayoutGen and imports that data into APD as an intelligent package database. It is completely independent of LayoutGen so that the APD user can be thousands of miles apart from the AutoCAD user.

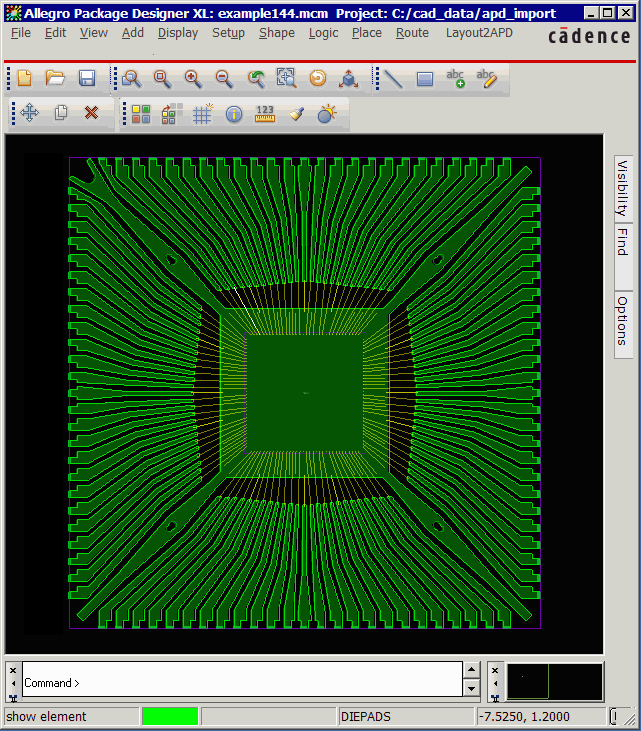

APD showing the imported leadframe package design


How it Works

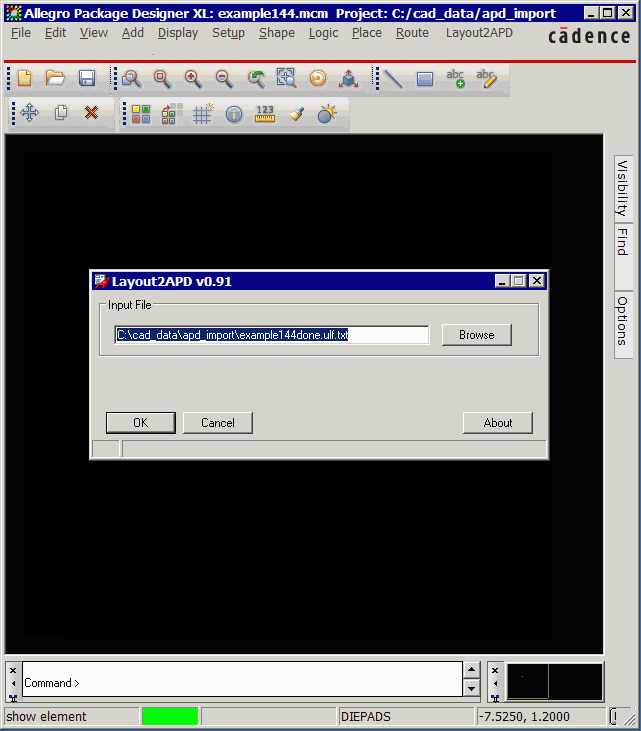

After installation you will see a menu pulldown called Layout2APD. Click on it and select the menu item, Layout2APD. A dialog will open as shown below:

Just use the Browse button to navigate to the ULF file to open and select it. The ULF file is imported into an intelligent database in APD.


Demo Video

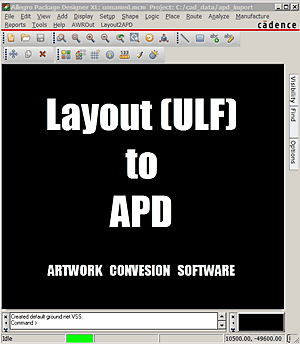

A short demo will give you an idea of just how this works.

Click to Watch Video (2 minutes)
