Downloading GDSPLOT for Windows

Requesting Password and License Strings

Prior to downloading you should contact Artwork and request the following information:

  • ftp server login and password

  • program installation password

  • program license strings

  • include your full contact info.

In order for us to generate license strings you need to provide us your machine's ID. This is best done by downloading the FlexLM_Tools utility and running it on your machine. Use the System Settings tab and copy the Ethernet Address that it displays. See below:

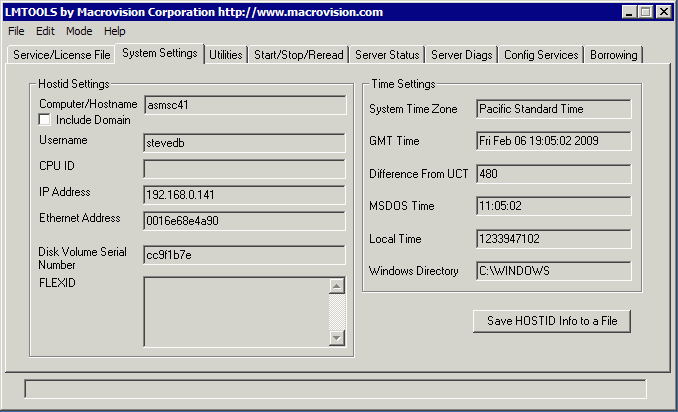

screen shot of LMTOOLS (System Settings Tab)


Example Email


Dear Hagai,

I would like to evaluate your GDSPLOT program.Please send me the
FTP login, the install password and temporary key strings for my
machine.

I got my ethernet physical address by using the lmtools
utility provided above.

ethernet address = 00560abE72

Reason for Evaluation
---------------------
I intend to use the program to create large color plots of my GDSII files.


Thanks much,

John Boy
International Harvesting and IC Design
10087 Champion Way Bldg 43
Topeka Kansas 09323
Tel (450) 132-2213  Fax (450) 132-2113




Files to Download

The GDSPLOT/W release is built as a self extracting .exe using Install Shield.



gdsplot.win32.v544.exe



Version 5.44 January 5, 2017[15 MB, password required]




Problems Accessing our FTP Site?

Artwork's FTP site requires a login and password to gain access. This information will be provided to you with the license strings.

If after clicking on the link you get a This Page Cannot be Displayed error, this may be due to Internet Explorer's problems accessing password protected FTP servers. In that case, please review the possible fixes on our support page.
