Video Tutorials
Nov 12, 2010

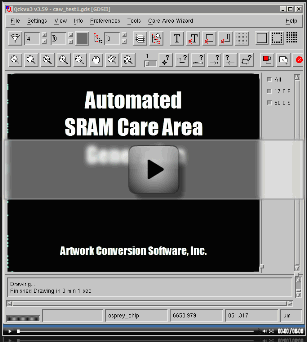

Takes the user step-by-step through the process of identifying SRAM care areas including: defining POLY and SRAM Support Layers, Finding the bitmap regions, Creating SRAM ID ruleset and extracting the windows containing SRAM memory regions to care areas. The final step runs in batch mode and generates the care areas.
Running time: 08:08 mm:ss

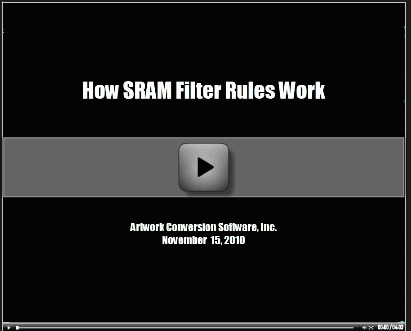

Illustration of Rule Filtering
Nov 15, 2010
Shows how the various rules for filtering patterns combine to pass the desired regions of the SRAM and remove or block the undesired elements ...
Running time: 04:33 mm:ss
