Split274X User Interface

Split274x has a simple use interface. Select the file to process, the output file and then which routines to apply. The program runs and creates the new file along with a report summarizing the before and after statistics.

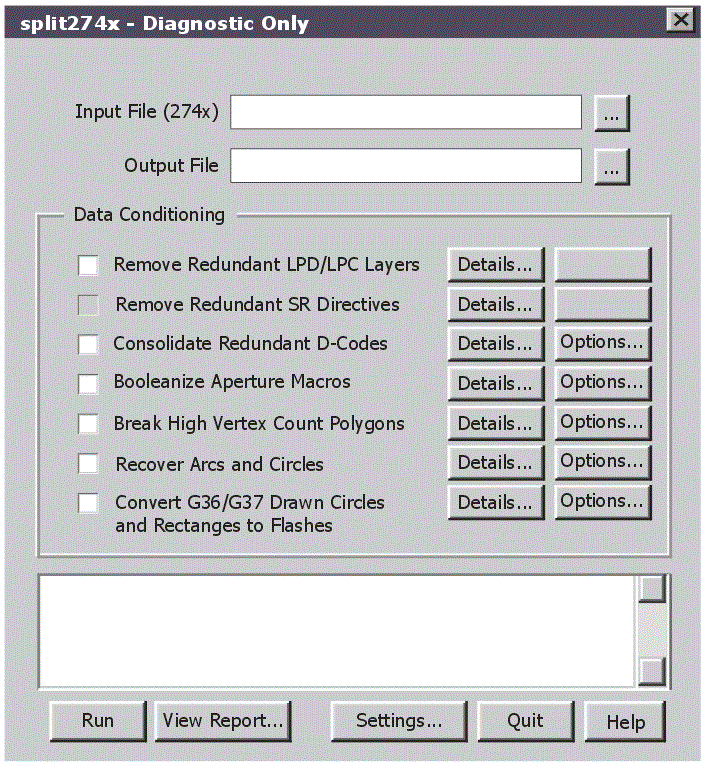

proposed main menu for split274x

Some of the operations have a Options... button which opens a dialog allowing the user to set rules or tolerances. Those that do not have an active options button have no user settable parameters.


Options

Consolidate Redundant D-Codes

identifies redundant D-codes and consolidates multiple definitions into a single one.

User sets a tolerance. If two d-codes differ by less than the tolerance they will be consolidated into a single d-code.
