Labeling is controlled from a simple dialog box shown at right:
Up to three labels can be assigned to each finger: Finger Number, Ball JEDEC, net name. These can be setup in any order desired.
|
Proper labeling of the bond fingers is important yet can be very tedious
and error prone when done manually. Bondgen automatically labels the fingers,
and supports many different labeling formats. Labeling is controlled from a simple dialog box shown at right: Up to three labels can be assigned to each finger: Finger Number, Ball JEDEC, net name. These can be setup in any order desired. |
|
Text AlignmentOrthogonal - text labels are either horizontal or vertical.Aligned - text is rotated so that it is aligned with the bond finger. |
|
Orthogonal Text Labels
|

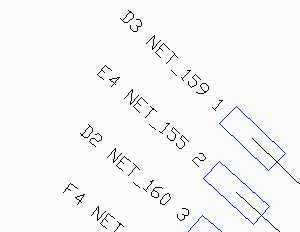

Aligned Text Labels
|
