Interface to Calibre RVE

Getting Started

To start up the interface between Qckvu and Calibre RVE go to the Tools pulldown and select the Calibre-RVE Settings item. A Setup dialog will pop open.

  Setting up the Calibre RVE Interface


Path to Calibre - define the full path to the Calibre RVE program. This enables Qckvu to start up Calibre if you wish.

IPC Settings - Calibre and Qckvu communicate via a TCP/IP socket. You must define a hostname, IP address and socket. If Calibre and Qckvu are executing on the same machine you can use the local host address of 127.0.0.1 instead of the machine's actual address.

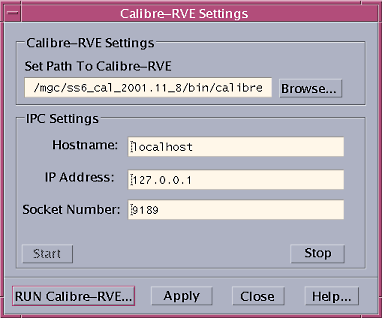

  Calibre RVE Setttings Dialog Box
