STIF to SEMI E142

STIF is the map format used by ST Microelectronics. It is a fully featured map file with data for all the parameters normally needed to process a wafer. We will be converting it to SEMI-E142 in this example.

Start the program by double clicking on the WaferMap Convert shortcut. The main dialog should open.

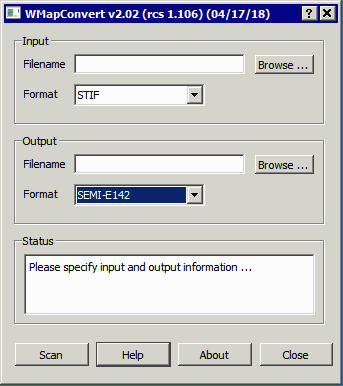

Now use the drop downs to set your input format to STIF and your output format to SEMI-E142.

main dialog set to convert STIF to E142.

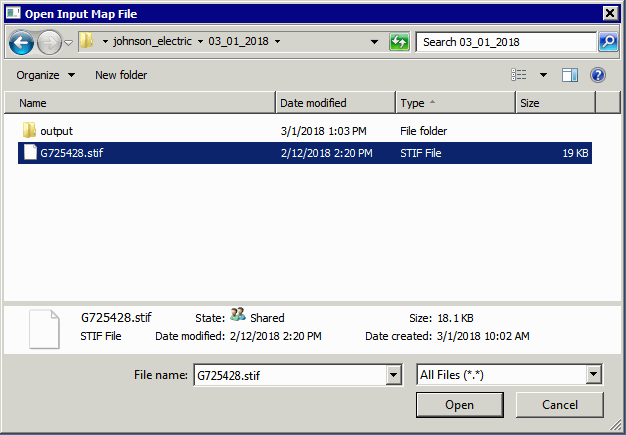

Use the Input | Browse... button and navigate to the file you wish to convert. In this case it is a file of type STIF.

open the STIF file from this dialog box

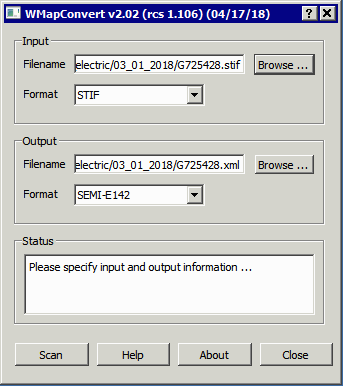

The dialog should now look like this:

Now click on the Scan button.

main dialog once the input file and type have been selected

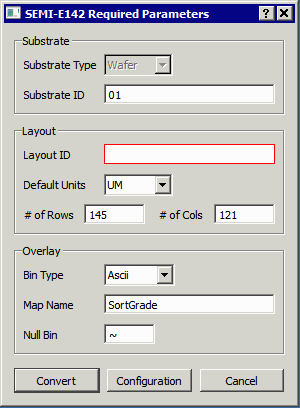

A new dialog should appear:

While the Layout ID does not really affect anything, it is a required field for E142 so we must put something there. Normally we use the Lot ID, which in this case is: G725428. But one can put any string here.

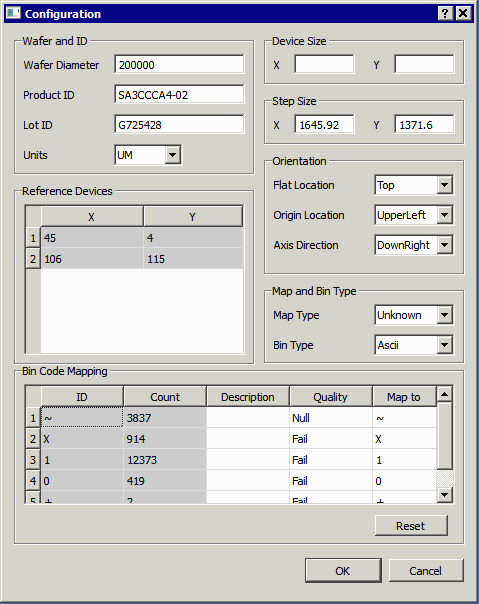

If we want to review or change the bin code mapping, we can then press Configure.

the dialog tells the user that he needs to enter a Layout ID for the E-142 file.

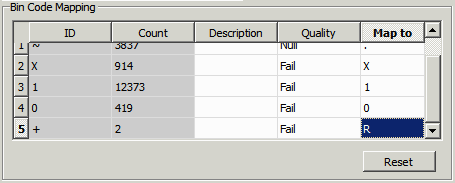

We want to make two changes to the bin code mapping. For the null bin we want to use a "." instead of the "~" used by STIF. We also want to change the "+" used by STIF for reference devices to a "R".



changes to the bin code mapping.

Click OK to save the changes and revert to the previous dialog. Then click on Convert.

the configuration dialog enables the user to modify the bin code mapping.

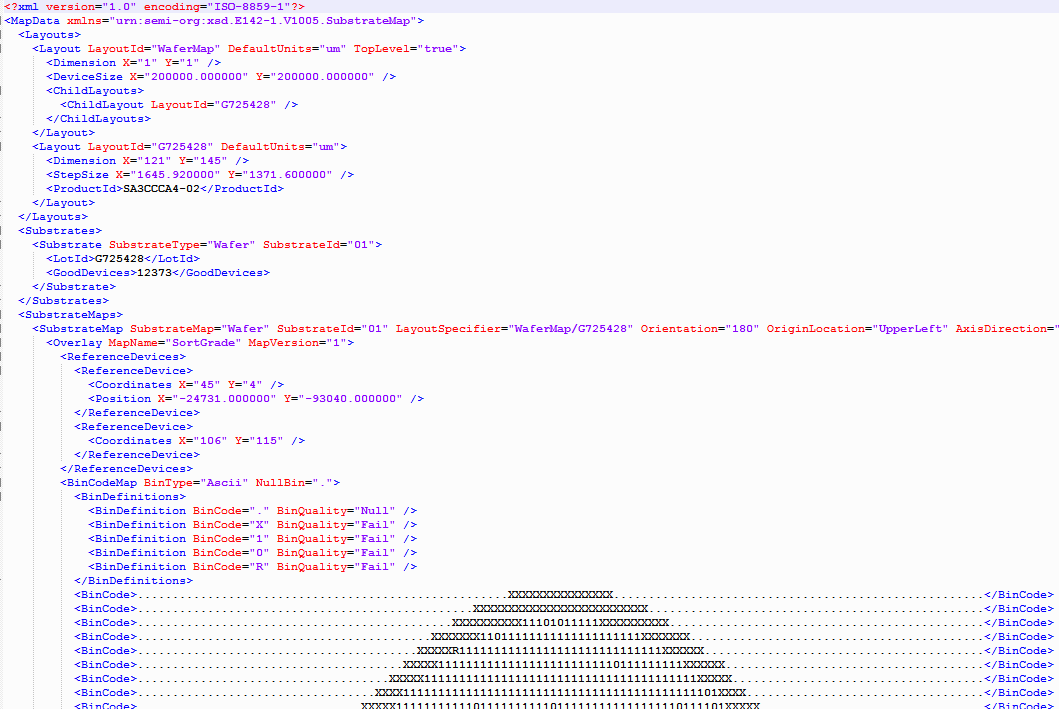

The resulting E152 file looks like this:

snapshot of the resulting 0/1 txt file generated from E142.
