The ASM 500 Family consists of a translator between AutoCAD's DXF file format and Gerber photoplotter code. Also included is a reverse translator from Gerber to DXF and a powerful Gerber viewer and plotter. Three versions are available with different feature sets and prices.

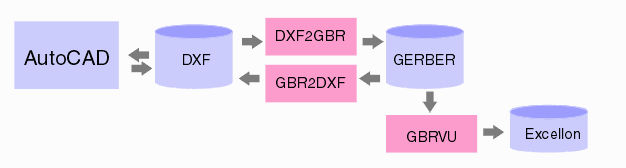

DXF to Gerber Flow


ASM 501W

low cost version for PCBs. Includes DXF to Gerber, Gerber to DXF and GBRVU. An extraordinary value!

Data Sheet

Download

Revision History

Price

FAQ

  ASM 502W

general purpose: supports PCBs and is a favorite among designers of hybrids, RF circuits, microwave circuits and analog circuits.

Data Sheet

Download

Revision History

Price

FAQ

  ASM 500W

all features of ASM 501 and 502 plus line linking and boundary creation.


Data Sheet

Download Windows

Revision History

Price

FAQ




Application Notes

Drawing PCBs with AutoCAD

This application note suggests guidelines on how to best set up and use AutoCAD to draw good PCB layouts that will translate correctly with ASM 500.

  Generating Drill Data with ASM 500

Describes the concept of drill data and how to get it from a DXF file to Gerber.   Flash


Translating Gerber (RS274X) Files to DXF

Describes how to properly configure GBR2DXF and translate Gerber RS274X files into AutoCAD DXF format.     Flash

  Creating Islands with Paint and Scratch

Describes the concept of paint and scratch - how to get clear islands in your film output.    Flash


Translating Gerber (RS274D) Files to DXF

Describes how to properly configure GBR2DXF and translate Gerber RS274D files into AutoCAD DXF format.    Flash


  Translating a Mwave Layout from DXF to Gerber

Describes how to translate a microwave layout done in AutoCAD into Gerber.    Flash
