Downloading AWRout

You can download the AWRout module from this page.


Requesting Password and License Strings

Prior to downloading you should contact Artwork and request the following information:

  • ftp server login and password

  • program installation password

  • program license strings

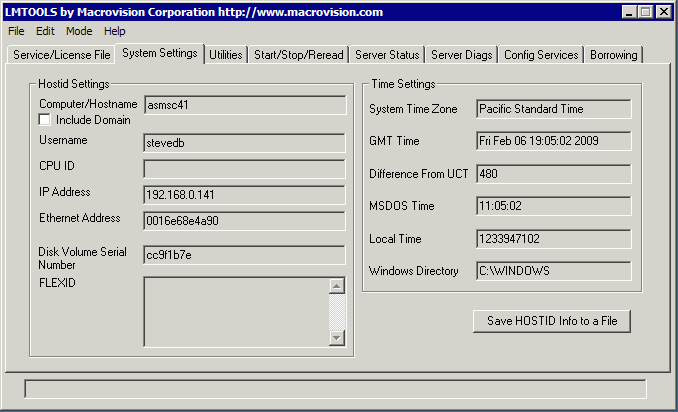

In order for us to generate license strings you need to provide us your machine's ID. This is best done by downloading the lmtools.zip utility and running it on your machine. Use the System Settings tab and copy the Ethernet Address and Disk Volume Serial Number that it displays. See below:





Downloads

Windows

Allegro/APD/Orcad 16.6

AWROut.x86.v1.53.exe





v1.53 1.9 MB 4/18/2017



Allegro/APD/Orcad 17.2

AWROut17.2.x86.v1.53.exe





v1.53 1.9 MB 4/18/2017



3DVU - 3Di Viewer for AWR Users

3dvuAWR.win32.v225.exe




8MB 09/02/2014



3DVU - 3Di Viewer with STEP and parasolid Output

3D-VU.x86.v2.59.exe




8MB 02/06/2017
