The AWROut Stackup Dialog

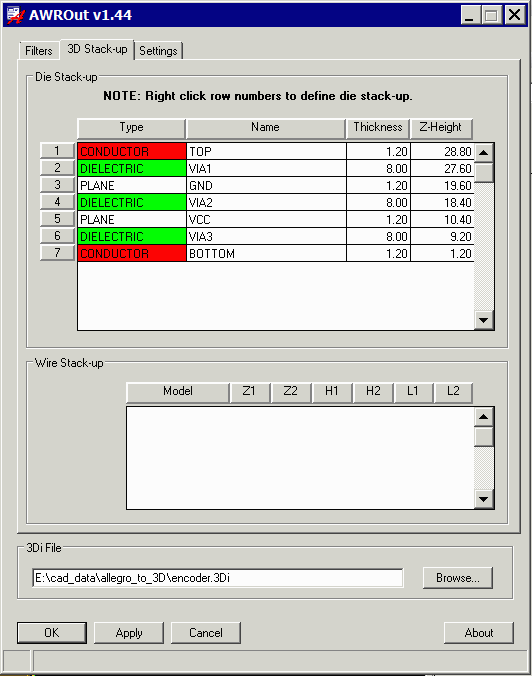

The AWROut's stackup dialog is shown below. In most cases there is no need to make any modifications to this dialog unless the original designer did not put in correct or realistic values for the thickness of the layers.





Die Stackup - For versions of APD prior to 16.1 it is necessary to add the die to the stackup. Allegro has no die models.

Wire Stackup - For versions of APD prior to 16.1 is is necessary to define your own wire models. Allegro has no wire models.
