Output

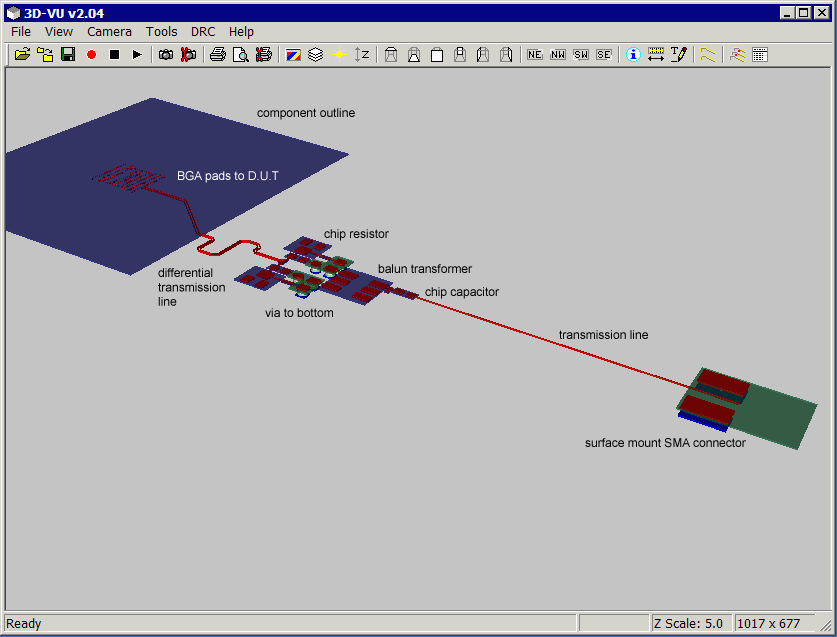

The output from AWROut is a 3Di file. This is an ascii description of the conductor geometry and includes properties such as nets, object type (pins, pads, wires, fingers ...) and the component information for any components that are attached to a selected net. Below is a snapshot of Artwork's 3DVU program displaying the 3Di output.





By reading the 3Di file, AWR's Microwave Office can bring in the required conductors and component information needed to analyze the selected net or nets.
